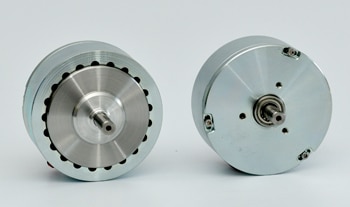

Used for torque loading and power absorption in test benches, actuators, etc, as well as tension control with wire, cable, ropes, threads, paper and foils at take-up and payoff equipment.Can be used as start coupling for rpm speed up control and as overload protection or braking against backlash. These brakes are noiseless, frictionless and wear free in their operation.Torque is independent from rpm speed. Torque is infinitely adjustable within each brake’s range of operation.

TECHNICAL DATA SERIES M

MODEL Torque at working current (Nm) Working current I1 (mA) Resistance at 25°C +/-10% (Ohm) Voltage VDC @ I1 rpm max 25°C +/-10%

Power dissipation (Watt)

 Residual Torque without current (Nm) Rotor inertia
(kgcm 2)		 Weight (kg) CUT SHEETSpdf SOLID MODELSLDPRT-icon
intermittent continuous

download

download
EB-3M-2 DS

0.02

155

171

25

20000

20

5

3.53E-04

0.0043

0.10
Download
EB-10M-2 DS

0.10

143

180

24

20000

35

8

7.06E-04

0.0435

0.24
Download
EB-20M-2 DS

0.15

232

120

24

20000

50

12

7.77E-04

0.0458

0.32
Download
EB-50M-2 DS

0.38

270

95

24

15000

90

23

1.55E-03

0.167

0.76
Download
EB-140M-2 DS

1.20

270

95

24

12000

300

75

5.42E-03

1.00

1.85
Download
EB-250M-2 DS

2.10

289

96

24

10000

450

110

7.77E-03

3.45

3.50
EB-450M-2 DS

3.60

473

50

24

8000

670

160

1.51E-02

7.50

5.60
Download
EB-750M-2 DS

5.80

410

60

23

6000

1000

200

5.00E-02

14.50

10.20
Download
EB-1750M-2 DS

14.50

535

52

26

6000

2400

350

9.18E-02

62.50

24.50
Download
EB-3500M-2 DS

29.00

1070

26

26

6000

4800

600

1.36E-01

125.00

49.75
Download

TECHNICAL DATA SERIES E

MODEL Torque at working current (oz-in) Working current I1(mA) Resistance at 25°C +/-10% (Ohm) Voltage VDC @ I1 rpm max 25°C +/-10%

Power dissipation (Watt)

 Residual Torque without current (oz-in) Rotor inertia
(lb-in-sec2)		 Weight (lb) CUT SHEETSpdf SOLID MODELSLDPRT-icon
intermittent continuous

download

download
EB-2.5E-2 DS

2.50

146

171

25

20000

20

5

0.05

3.80E-06

0.24

 click here
EB-10E-2 DS

10.00

133

180

24

20000

45

12

0.10

3.30E-05

0.49

 click here
EB-16E-2 DS

16.00

192

125

24

20000

75

20

0.10

5.60E-05

0.65

 click here
EB-38E-2DS

38.00

250

105

26

15000

90

25

0.20

8.60E-05

1.06

 click here
EB-50E-2 DS

50.00

253

95

24

15000

90

23

0.20

1.48E-04

1.72

 click here
EB-140E-2 DS

14.00

253

95

24

12000

300

75

0.70

9.10E-04

4.06

 click here
EB-250E-2 DS

250.00

270

96

26

10000

450

110

1.00

2.75E-03

7.73

 click here
EB-450E-2 DS

450.00

442

50

22

8000

670

160

2.00

6.55E-03

12.90

 click here
EB-750E-2 DS

750.00

383

60

23

7000

1000

200

7.00

1.28E-02

28.30

 click here
EB-840E-2DS

840.00

600

40

24

6000

1340

300

4.00

1.31E-02

26.30

 click here
EB-1750E-2 DS

1750.00

500

52

26

6000

1200

350

13.00

5.28E-02

54.00

 click here
EB-3500E-2 DS

3500.00

1000

26

26

6000

2400

600

19.20

1.06E-01

110.00

 click here

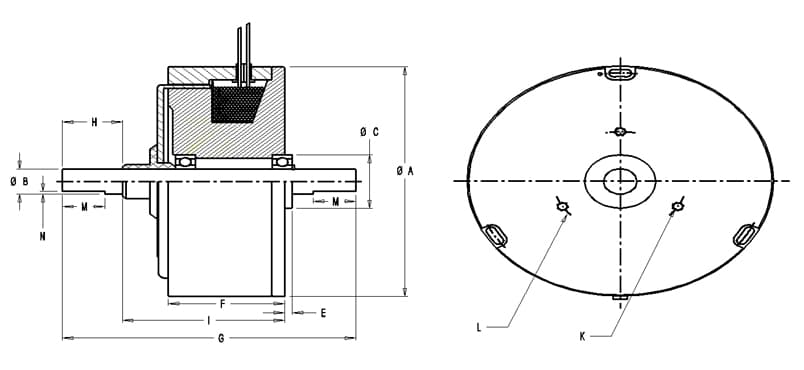

DIMENSIONAL DATA SERIES M

MODEL

DIA A
(mm)

DIA B
(mm)

DIA C
(mm)

E
(mm)

F
(mm)

G
(mm)

H
(mm)

I
(mm)

K
(mm)

DIA L
(mm)

M
(mm)

N
(mm)

g5

h6
EB- 3M-2DS

31.8

3.00

10.00

2.0

18.6

42.2

8.0

24.0

M2.5 X 4

19.0

–

–
EB- 10M-2DS

45.7

5.00

14.00

2.4

20.7

52.6

12.1

25.4

M2.5 X 5

19.0

9.5

0.7
EB- 20M-2DS

50.0

5.00

14.00

1.7

23.5

55.8

13.0

27.3

M3 x 6

21.0

9.5

0.7
EB- 50M-2DS

60.0

7.00

17.00

2.0

39.9

76.5

15.0

42.8

M4 x 8

25.0

10.0

0.7
EB- 140M-2DS

92.0

10.00

22.00

2.5

39.0

100.0

25.0

50.8

M4 x 9

38.0

16.0

1.1
EB- 250M-2DS

112.5

12.00

28.00

4.0

50.8

123.1

27.0

64.3

M5 x 10

45.0

 KEYWAY SEE
BELOW
EB- 450M-2DS

137.5

15.00

32.00

3.5

52.4

132.1

27.0

73.0

M5 x 10

60.0
EB- 750M-2DS

158.0

17.00

35.00

4.5

73.0

176.3

38.0

95.0

M6 x 12

70.0
EB-1750M-2DS

226.0

25.00

52.00

6.0

76.2

213.0

50.0

107.0

M6 x 12

100.0
EB-3500M-2DS

226.0

25.00

–

–

152.4

312.0

50.0

214.0

MTG PLATE 216 X 130 (T=12.7)

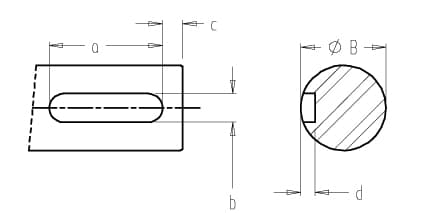

MODEL

a
(mm)

b
(mm)

c
(mm)

d
(mm)

ØBh6
(mm)

EB- 250M-2DS

20

4.0

3.5

2.5

12

EB- 450M-2DS

20

5.0

3.5

3.1

15

EB- 750M-2DS

20

5.0

9.0

3.1

17

EB-1750M-2DS

25

8.0

12.5

4.0

25

EB-3500M-2DS

25

8.0

12.5

4.0

25

DIMENSIONAL DATA SERIES E

MODEL

DIA A
(in)

DIA B
(in)

DIA C
(in)

E
(in)

F
(in)

G
(in)

H
(in)

I
(in)

K
(in)

DIA L
(in)

M
(in)

N
(in)

g5

h6
EB- 2.5E-2DS

1.25

0.1250

0.375

0.04

0.73

1.56

0.29

0.94

#4-40 X 0.16

0.750

–

–
EB- 10E-2DS

1.80

0.1875

0.500

0.12

0.82

2.12

0.50

1.00

#4-40 X 0.19

0.687

0.38

0.03
EB- 16E-2DS

1.97

0.1875

0.500

0.11

0.81

2.11

0.51

0.95

#4-40 X 0.19

0.750

0.38

0.03
EB-38E-2DS

2.16

0.2500

0.625

0.13

1.25

3.00

0.56

1.69

#6-32 X 0.25

0.906

0.38

0.03
EB- 50E-2DS

2.36

0.2500

0.625

0.13

1.56

3.00

0.56

1.69

#6-32 X 0.25

0.906

0.38

0.03
EB- 140E-2DS

3.62

0.3750

0.875

0.17

1.53

3.97

1.00

2.00

#8-32 X 0.37

1.500

0.63

0.06
EB- 250E-2DS

4.44

0.5000

1.125

0.19

1.98

4.72

1.06

2.53

#10-32 X 0.50

1.750

0.625

0.060
EB- 450E-2DS

5.42

0.5000

1.125

0.19

2.06

5.16

1.06

2.87

#10-32 X 0.38

1.750

0.630

0.060
EB- 750E-2DS

6.22

0.6250

1.375

0.20

2.87

6.93

1.50

3.74

1/4-20 X 0.44

2.750

0.750

0.060
EB-840E-2DS

5.49

0.5000

*

*

4.13

7.75

1.00

*

*

*

0.625

0.060
EB-1750E-2DS

8.90

1.0000

2.000

0.31

3.00

8.31

2.04

4.18

1/4-20 X 0.50

3.000

 #807 WOODRUFF KEYWAY    (2 PLS)
EB-3500E-2DS

8.90

1.0000

*

*

6.00

12.46

2.04

*

*

*
