Spiked Drive Plates and Cones
Spiked drive plates and cones (sold as set)
for Armid yarns. (See Applications) |

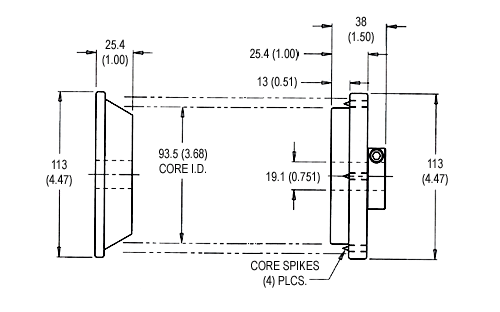

| Model
750-034
Fits 3.86" Cores
3/4" Bore |
 |
| Model
750-072
Fits 3.86" Cores
1 " Bore |
 |

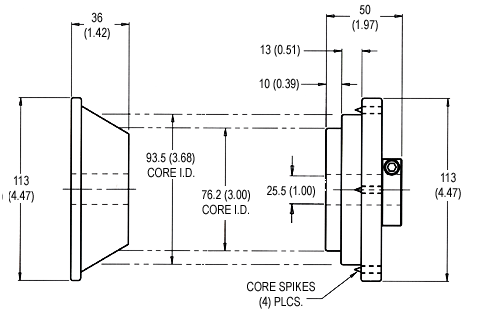

| Model
750-070
Fits both 3.00" and
3.86" Cores
1 " Bore |
 |
| |
|
|
Adaptors |
 |
Metric
(mm)
|
Dimensions |
|
English
(in)
|
Dimensions |
|
|
|
| Model |
Fits |
OD |
A |
L |
B |
F |
|
Model |
Fits |
OD |
A |
L |
B |
F |
|
750-075 |
655 |
63.5 |
25.4 |
33.2 |
9.5 |
Flat |
|
750-075 |
655 |
2.50 |
1.00 |
1.31 |
.375 |
Flat |
| 750-005 |
523 |
82.5 |
25.4 |
33.2 |
9.5 |
Flat |
|
750-005 |
523 |
3.25 |
1.00 |
1.31 |
.375 |
Flat |
| 750-076 |
610 |
114 |
30.5 |
44.5 |
12.7 |
1/8" Key |
|
750-076 |
610 |
4.50 |
1.20 |
1.75 |
.500 |
1/8" Key |
| 750-077 |
663 |
127 |
34.3 |
47 |
19.0 |
3/16" Key |
|
750-077 |
663 |
5.00 |
1.35 |
1.85 |
.750 |
3/16" Key |
| |
|
|
Spool Adaptors |
| Model
750-184
To mount 1 1/4" reels
on 1" shafts.
Other sizes available. |
 |
