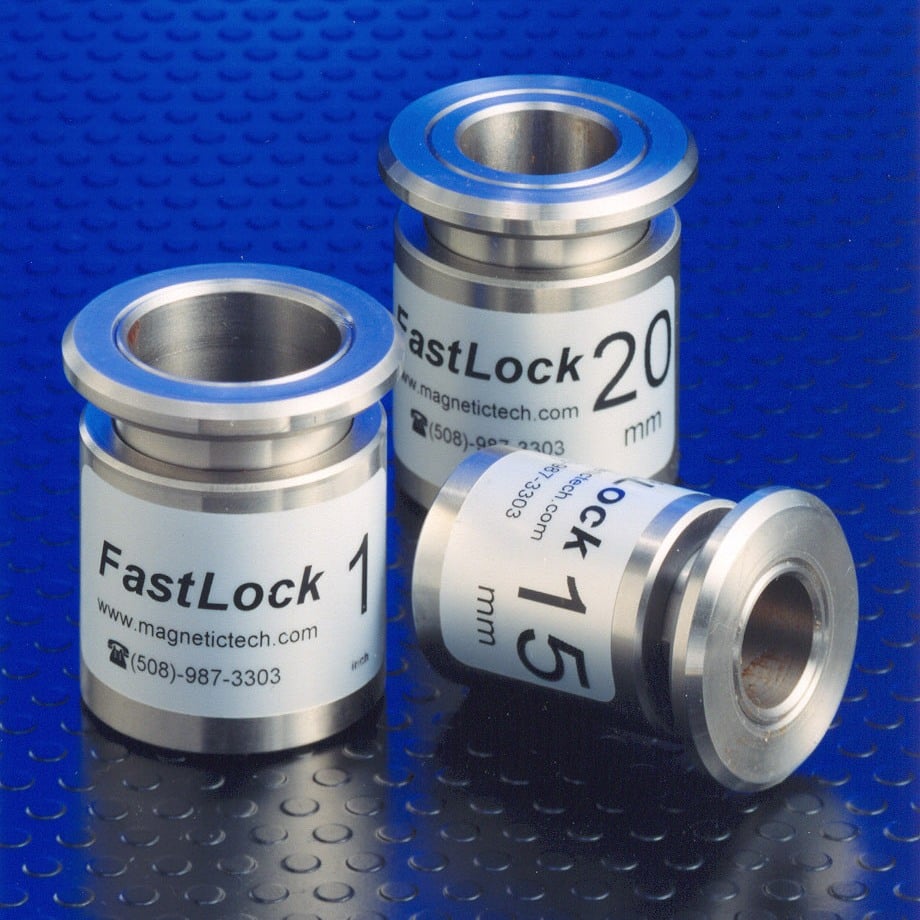

FastLock

Shaft Locking Collars

Metric
(mm)
Dimensions
English
(in)
Dimensions


Model
A
B
C
kg
Model
A
B
C
lb
FL-6mm
6 18.5 26 0.03
FL-.250
.250
0.73 1.00 0.07
FL-8mm
8 18.5 26 0.03
FL-.312
.3125
0.73 1.00 0.07
FL-10mm
10 22 45 0.08
FL-.375
.375
0.85 1.78 0.19
FL-15mm
15 28 45 0.13
FL-.437
.437
0.85 1.78 0.18
FL-16mm
16 28 45 0.13
FL-.500
.500
1.10 1.78 0.29
FL-18mm
18 31 45 0.14
FL-.562
.562
1.10 1.78 0.26
FL-20mm
20 37 45 0.21
FL-.625
.625
1.10 1.78 0.25
FL-22mm
22 37 45 0.22
FL-.750
.750
1.23 1.78 0.31
FL-25mm
25 37 45 0.19
FL-.875
.875
1.45 1.78 0.37
FL-30mm
30 50 45 0.39
FL-1.00
1.000
1.45 1.78 0.32
FL-32mm
32 57 48 0.53
FL-1.25
1.250
2.23 1.87 1.13
FL-35mm
35 57 48 0.47
FL-1.37
1.375
2.23 1.87 1.00
FL-36mm
36 57 48 0.45
FL-1.50
1.500
2.23 1.87 0.93
FL-40mm
40 60 48 0.56
FL-1.625
1.625
2.35 1.87 0.91
FL-45mm
45 69 48 0.84
FL-1.750
1.750
2.72 1.87 0.91
FL-50mm
50 69 48 0.70
FL-1.875
1.875
2.72 1.87 0.82
FL-55mm
55 75 49 0.62
FL-2.00
2.000
2.95 1.87 1.54
FL-56mm
56 75 49 0.60
FL-2.50
2.500
3.47 1.87 1.87
FL-3.00
3.000
3.47 1.87 1.30
1
2
3
Slide
locking collar as shown
Locking
collar holds reel.
To release, hold body and
pull release ring. This makes the “gap” between
the body and ring larger allowing the FastLock
to slide off easily.
