929

Model 929 - Shaft Design
Torque: .68-15 Nm / 6-140 in lbs
Bending Moment: 23Nm/200 in lbs

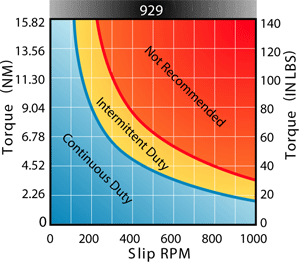

Heat Dissipation: 180 Watts
Maximum RPM @ Maximum Torque Setting: 180



Metric

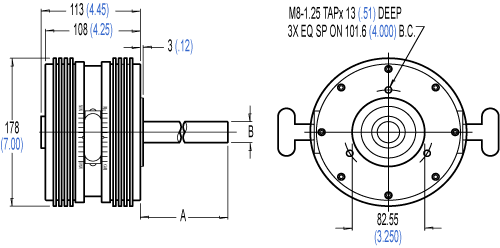

Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B
kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001
929-001
11.8
182
76
25.4

929-001
26
400
3.0
1.0


For assistance with above chart,
see our Selection Criteria page.
