663

Model 663 - Shaft Design
Torque: .33 - 7.9 Nm / 3 - 70in lbs
Bending Moment: 23 Nm/200 in lbs
Heat Dissipation: 150 Watts
Maximum RPM @ Maximum Torque Setting: 180


Metric

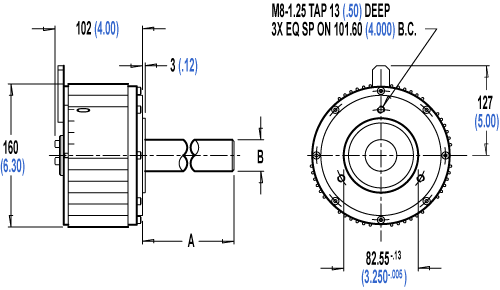

Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B

kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001

663-041
8.92
141.0
282
22.0

663-041
19.7
200.0
11.1
.866

663-042
8.43
141.0
88.9
25.0
663-042
18.6
200.0
3.5
.984

663-001
8.43
141.0
88.9
25.4

663-001
18.6
200.0
3.5
1.00

663-003
9.10
141.0
254
25.4

663-003
20.0
200.0
10.0
1.00


Other sizes available; specify both "A" and "B"


For assistance with above chart,
see our Selection Criteria page.
