610

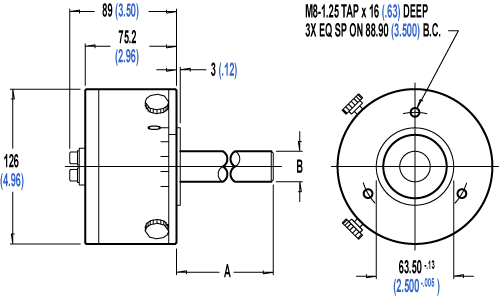

Model 610 - Shaft Design
Torque: .14 - 4.5 Nm / 1.2 - 40in lbs
Bending Moment: 17 Nm/150 in lbs
Heat Dissipation: 95 Watts
Maximum RPM @ Maximum Torque Setting: 180


Metric
Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B

kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001

610-014
4.60
39.0
88.9
19.05

610-014
10.2
55.0
3.5
.750

610-095
5.12
40.0
242.0
22.00

610-095
11.3
57.0
9.5
.866

610-011
5.00
40.0
152.4
25.00

610-011
11.0
57.0
6.0
.984

610-024
5.40
44.0
254.0
25.00

610-024
11.9
62.0
10.0
.984

610-055
5.62
46.0
304.8
25.40

610-055
12.4
65.0
12.0
1.00


Other sizes available; specify both "A" and "B"


For assistance with above chart,
see our Selection Criteria page.
