610

Model 610 - Coupling Design
Torque: .14 - 4.5 Nm / 1.2 - 40in lbs
Bending Moment: 17 Nm/150 in lbs

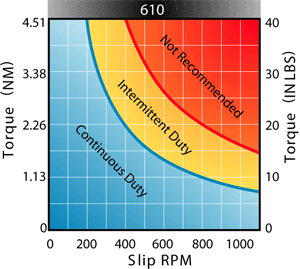

Heat Dissipation: 95 Watts
Maximum RPM @ Maximum Torque Setting: 180


Metric

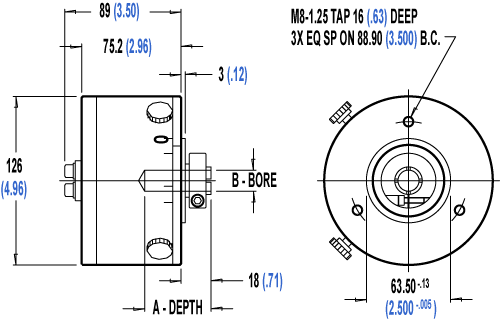

Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B

kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001

610-029
4.80
37.0
76
15.87

610-029
10.6
52.0
3.0
.625

610-048
4.80
37.0
63
16.00

610-048
10.6
52.0
2.5
.630

610-035
4.80
37.0
63
19.05

610-035
10.6
52.0
2.5
.750




For assistance with above chart,
see our Selection Criteria page.
