609
   Heavy-Duty
   Tapered Roller Bearing Construction

Model 609 - Shaft Design
Torque: .035-.62 Nm / .31-5.5 in lbs
Bending Moment: 12 Nm/100 in lbs

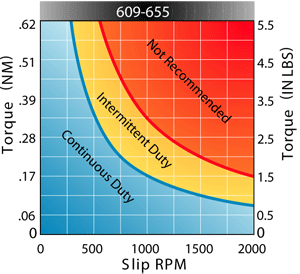

Heat Dissipation: 18 Watts
Maximum RPM @ Maximum Torque Setting: 450



Metric
Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B
kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001
609-040
2.40
6.9
241
15.00

609-040
5.3
9.8
9.5
.590
609-001
2.31
6.7
152
15.87

609-001
5.1
9.5
6.0
.625
609-002
2.45
7.1
241
15.87

609-002
5.4
10.1
9.5
.625
609-029
2.90
10.9
270
22.00

609-029
6.4
15.4
10.6
.866
609-031
3.30
15.8
305
25.40

609-031
7.3
22.5
12.0
1.00

Other sizes available; specify both "A" and "B"

For assistance with above chart,
see our Selection Criteria page.
