608
   Heavy-Duty
   Tapered Roller Bearing Construction

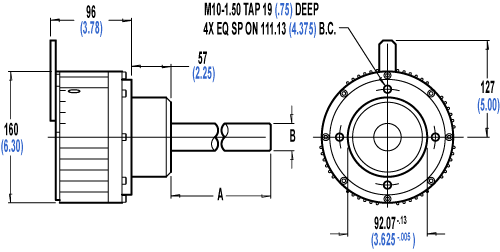

Model 608 - Shaft Design
Torque: .42-7.9 Nm / 4-70 in lbs
Bending Moment: 225 Nm/2000 in lbs

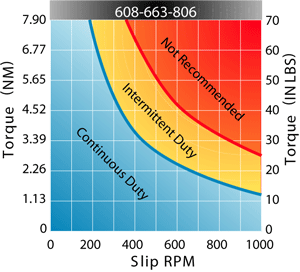

Heat Dissipation: 150 Watts
Maximum RPM @ Maximum Torque Setting: 180



Metric
Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B
kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001
608-008
11.3
177
88.9
25.40

608-008
25
250
3.5
1.00
608-026
9.5
188
355.6
25.40

608-026
21
265
14.0
1.00
608-029
10.7
177
340
35.00

608-029
24
250
13.4
1.378
608-005
9.5
200
152.4
38.10

608-005
21
285
6.0
1.50
608-004
13.6
226
304.8
38.10

608-004
30
320
12.0
1.50

Other sizes available; specify both "A" and "B"

For assistance with above chart,
see our Selection Criteria page.
