Model 527 - Shaft Design
Torque: (See Below)
Bending Moment: 4 Nm/35 in lbs

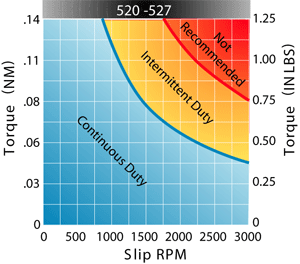

Heat Dissipation: 13 Watts
Maximum RPM @ Maximum Torque Setting: 900


Standard Version
Torque: .003-.14 Nm / .03-1.25 in lbs
Metric

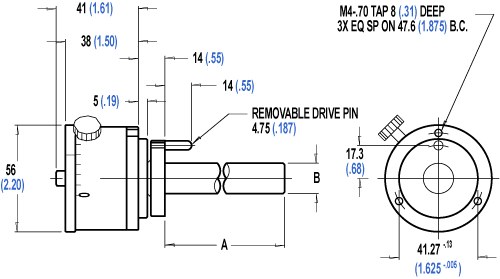

Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B

kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001

527-0141
.77
2.1
158
15

527-0141
1.7
3.0
6.2
.590

527-016
.73
2.1
127
15.87

527-016
1.6
3.0
5
.625

527-029
.95
2.9
279
15.87

527-029
2.1
4.1
11
.625

527-077
.91
5.1
203
22

527-077
2.5
7.3
8
.866

527-035
.91
3.4
182
25.40

527-035
2.0
4.8
7.1
1.00


Other sizes available; specify both "A" and "B"

Low-Torque Version
Torque: .001-.08 Nm / .013-.75 in lbs
Metric
Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B

kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001

527-0141-1
.77
2.1
158
15

527-0141-1
1.7
3.0
6.2
.590

527-016-1
.73
2.1
127
15.87

527-016-1
1.6
3.0
5
.625

527-029-1
.95
2.9
279
15.87

527-029-1
2.1
4.1
11
.625

527-077-1
.91
5.1
203
22

527-077-1
2.5
7.3
8
.866

527-035-1
.91
3.4
182
25.40

527-035-1
2.0
4.8
7.1
1.00


Other sizes available; specify both "A" and "B"

For assistance with above chart,
see our Selection Criteria page.
