523

Model 523 - Hollow Design
Torque: .03-1.36 Nm / .3-12 in lbs
Bending Moment: 9 Nm/80 in lbs

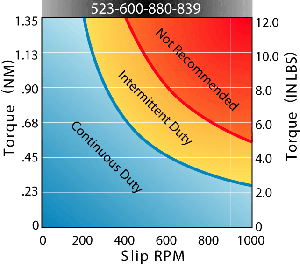

Heat Dissipation: 28 Watts
Maximum RPM @ Maximum Torque Setting: 200


Metric

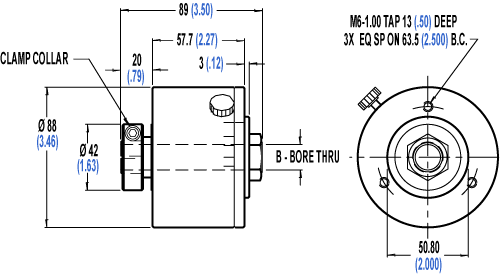

Dimensions

English
Dimensions

Model
Weight
Inertia

B (Bore)

Model
Weight
Inertia

B (Bore)

kg
(kgm2)x10-5

+.03mm

lb
(in oz s2)x10-3

+.03mm

523-0201
1.86
7.8

12.7

523-0201
4.1
11.00

0.500

523-0206
1.86
7.8

15.8

523-0206
4.1
11.00

0.625

523-0208
1.86
7.8

16

523-0208
4.1
11.00

0.630




For assistance with above chart,
see our Selection Criteria page.
