523

Model 523 - Coupling Design
Torque: .03-1.36 Nm / .3-12 in lbs
Bending Moment: 9 Nm/80 in lbs

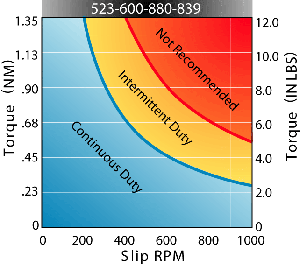

Heat Dissipation: 28 Watts
Maximum RPM @ Maximum Torque Setting: 200


Metric

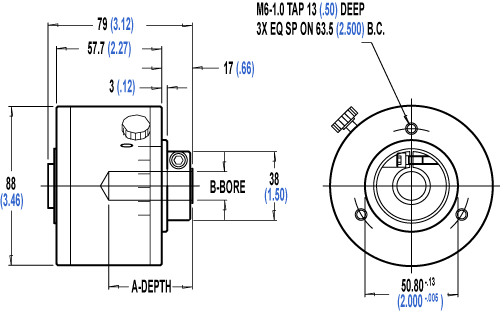

Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B

kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001

523-095
1.86
7.8
44
12.70

523-095
4.1
11.0
1.75
0.500

523-0193
1.86
7.8
44
15.00

523-0193
4.1
11.0
1.75
0.590

523-096
1.86
7.8
44
15.87

523-096
4.1
11.0
1.75
0.625




For assistance with above chart,
see our Selection Criteria page.
