513

Model 513 - Shaft Design
Torque: (See Below)
Bending Moment: .22 Nm/2 in lbs

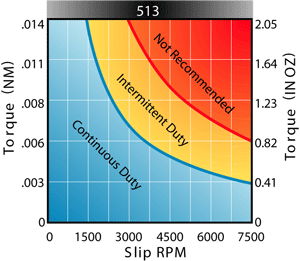

Heat Dissipation: 2.2 Watts
Maximum RPM @ Maximum Torque Setting: 1500



Standard Version
Torque: .001 to .014 Nm   /  .11 to 2 in .oz
Metric

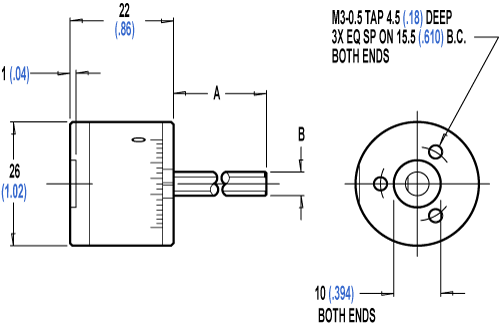

Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B
kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001
513-001
.071
9.2
13
5

513-001
.16
1.3
.51
0.197
513-007
.071
9.2
25
5

513-007
.16
1.3
.98
0.197





Low-Torque Version
Torque: .001 to .007 Nm   /  .11 to 1 in .oz
Metric
Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B
kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001
513-001-1
.071
9.2
13
5

513-001-1
.16
1.3
.51
0.197
513-007-1
.071
9.2
25
5

513-007-1
.16
1.3
.98
0.197





Ultra Low-Torque Version
Torque: .0003 to .002 Nm   /  .042 to .28 in .oz
Metric
Dimensions

English
Dimensions

Model
Weight
Inertia
A
B

Model
Weight
Inertia
A
B
kg
(kgm2)x10-5
mm
mm-.03

lb
(in oz s2)x10-3
in
in-.001
513-001-2
.071
9.2
13
5

513-001-2
.16
1.3
.51
0.197
513-007-2
.071
9.2
25
5

513-007-2
.16
1.3
.98
0.197



For assistance with above chart,
see our Selection Criteria page.
